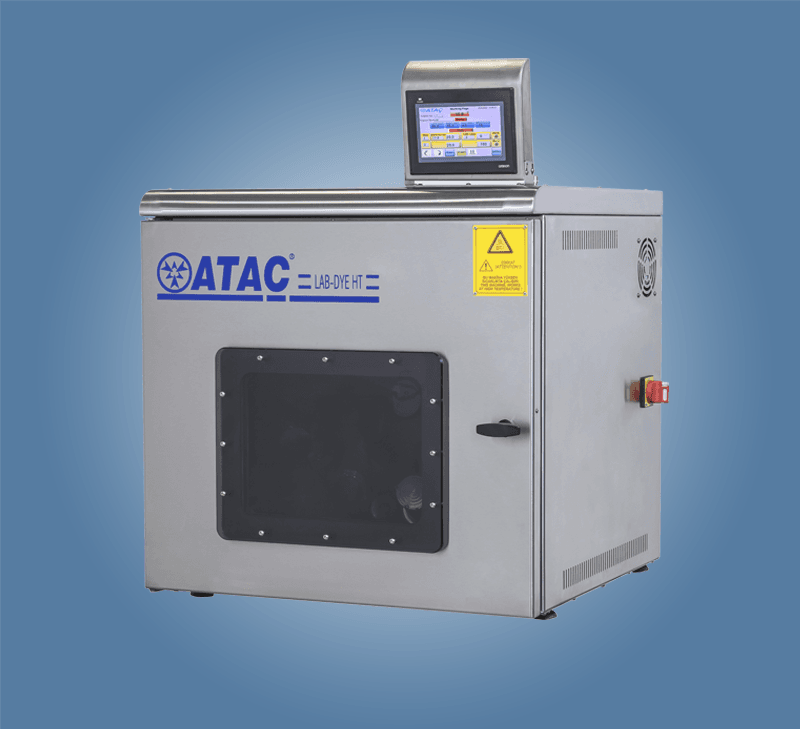

ATC LAB DYE HT 10/16/24
LAB-DYE HT 10/16/24 is an IR-type laboratory sample dyeing machine developed for textile laboratories. Designed for both high-temperature (HT) and atmospheric dyeing processes, it delivers precise, repeatable, and homogeneous dyeing results for various fabric and yarn samples. The series consists of three different models with 10, 16, and 24 tube capacities, and is available with either 180 ml or 300 ml standard tube options according to user preference.
Thanks to its IR resistance heating system, the LAB-DYE HT series ensures fast and stable temperature control. Its PLC-controlled programming infrastructure and user-friendly touchscreen interface provide ease of operation. Offering high process accuracy and reliable performance, the system is designed to enhance efficiency in laboratory environments.
It is an ideal solution for quality control, recipe optimization, color matching studies, and R&D applications in sample dyeing laboratories.
ATC LAB DYE HT 10/16/24

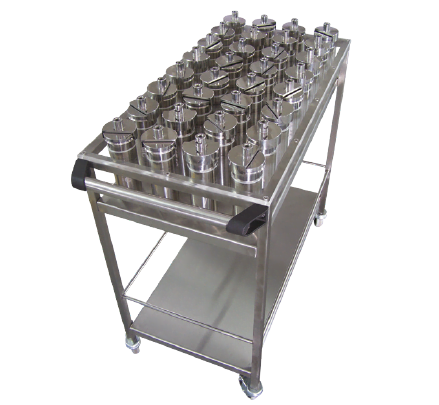

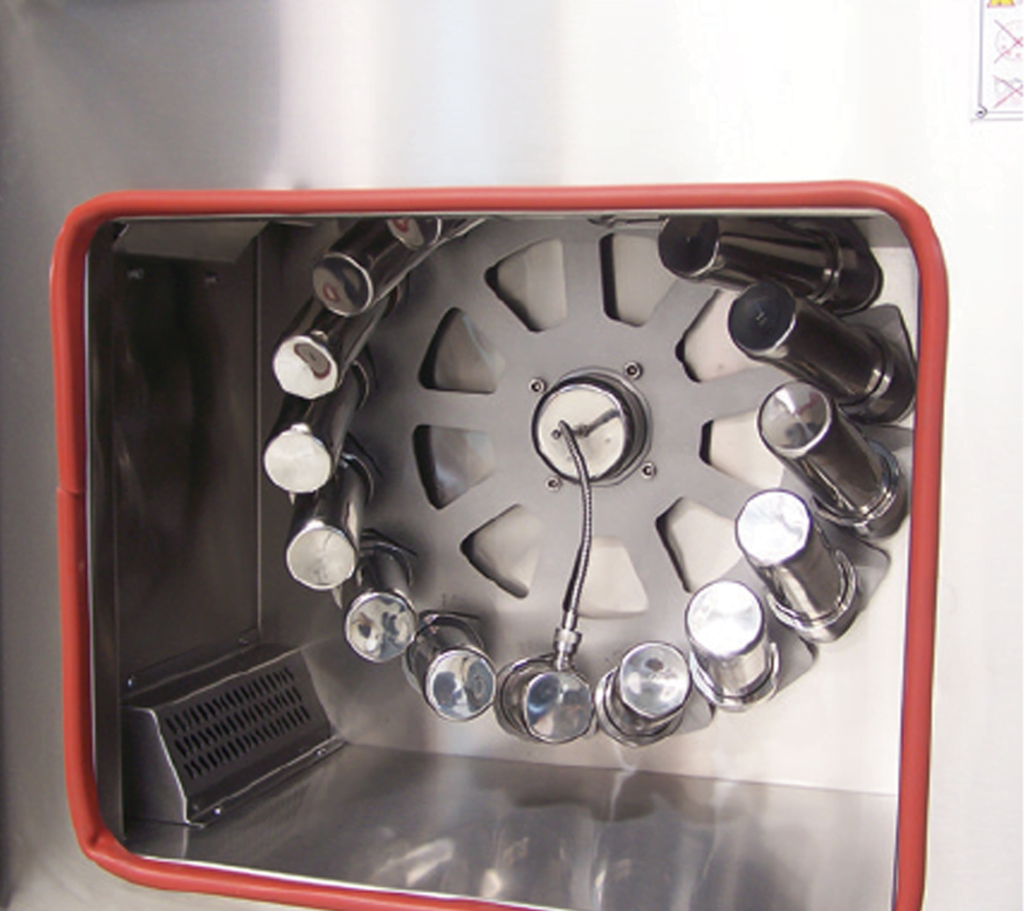

- Dyeing tubes can be easily installed and removed.
- Infrared heating system
- Low power consumption
- Ensures precise compatibility with actual operating conditions by referencing liquor temperature.

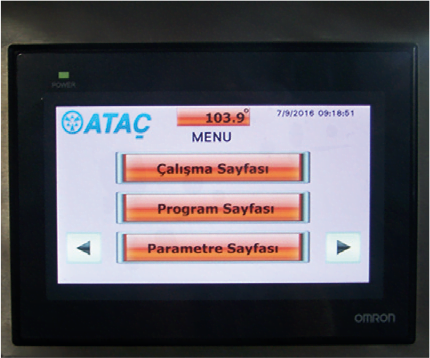

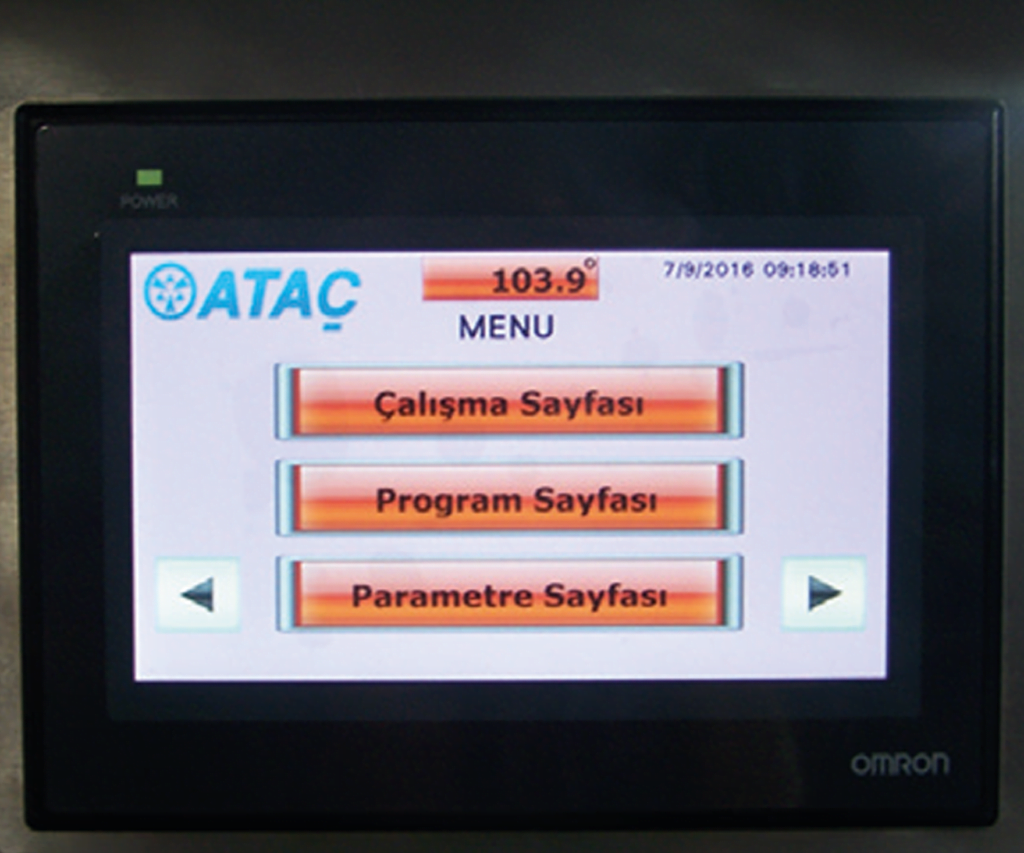

- 7” inch control panel
- User-friendly interface with Turkish language option
- Ability to create custom programs with desired parameters
- Post-process historical graph monitoring and control capability
| Machine | HT10 | HT16 | HT24 |
|---|---|---|---|
| General Structure | Cr-Ni Stainless Steel | Cr-Ni Stainless Steel | Cr-Ni Stainless Steel |
| Machine Capacity | 10 Tubes (180–300 ml) | 16 Tubes (180–300 ml) | 24 Tubes (180–300 ml) |
| Operating Temperature | 35–135°C | 35–135°C | 35–135°C |
| Heating Type | IR Resistance | IR Resistance | IR Resistance |
| Heating Capacity | 2.0 kW | 2.6 kW | 3.0 kW |
| Heating Rate | Max. 4°C/min | Max. 4°C/min | Max. 4°C/min |
| Cooling Type | Air Circulation + Water | Air Circulation + Water | Air Circulation + Water |
| Cooling Rate | Max. 3°C/min | Max. 3°C/min | Max. 3°C/min |
| Operating Speed | 15–40 rpm | 15–40 rpm | 15–40 rpm |
| Control | PLC Control with 100 Programs × 20 Steps | PLC Control with 100 Programs × 20 Steps | PLC Control with 100 Programs × 20 Steps |
| Dimensions | 650 × 680 × 825 mm | 720 × 680 × 940 mm | 780 × 680 × 1070 mm |
| Weight | 95 kg | 120 kg | 140 kg |
| Power Supply | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz |
| Total Power | 2.3 kW | 3.0 kW | 3.7 kW |
| Display | Touchscreen Display | Touchscreen Display | Touchscreen Display |
The machine is designed to operate with 200 ml, 300 ml, 550 ml, and 1250 ml tubes by changing the machine disc.
