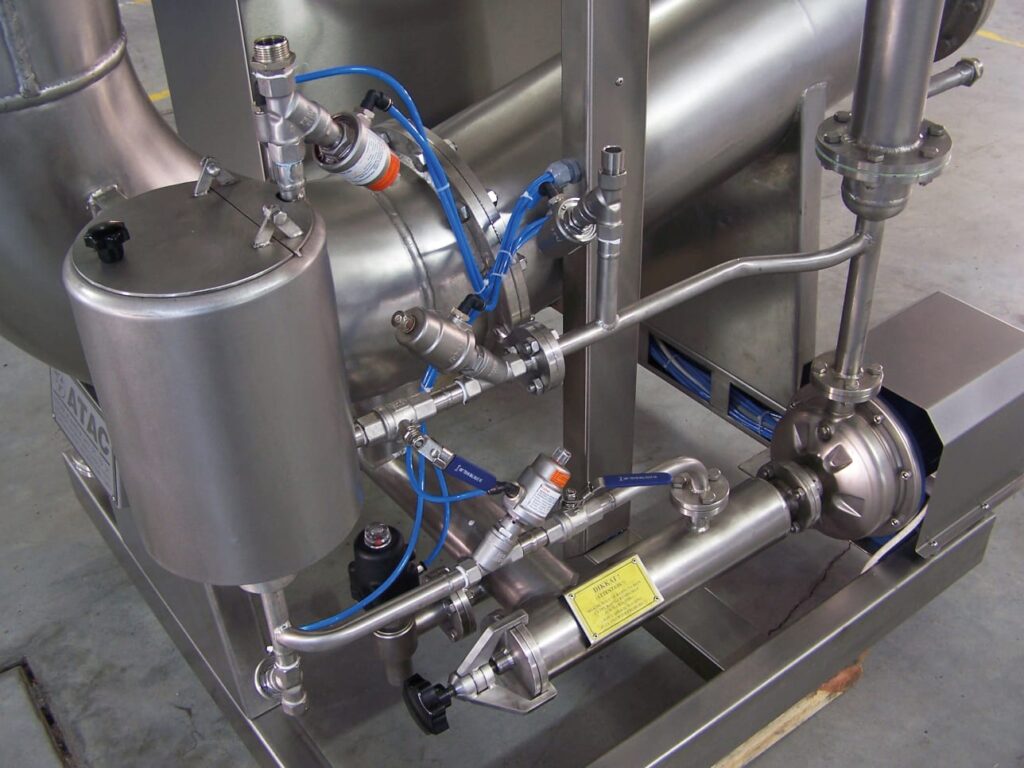

Fabric Dyeing Machine ATC – DYE HT-01/05/15F

Sample fabric dyeing machine with 1-25 kg varieties. In line with R&D and laboratory studies; It provides the opportunity to perform bleaching and dyeing processes of tube and open width cotton, synthetic and mixed fibers. With special long tube design, it provides the opportunity to save 1:10-1:15 liquor compared to other dyeing machines. With the automatic adjustable nozzle system, nozzle pressure can be controlled from the programmer.

Fabric Dyeing Machine ATC – DYE HT-01/05/15F

Machine ATC-DYE HT03F ATC-DYE HT05F ATC-DYE HT15F
General Material Cr-Ni Stainless Steel Cr-Ni Stainless Steel Cr-Ni Stainless Steel
Machine Capacity 3 kg 5 kg 15 kg
Max. Temperature 140 °C 140 °C 140 °C
Heating Type Resistance or Steam Steam Exchanger Steam Exchanger
Working Pressure 2,7 Bar 2,7 Bar 2,7 Bar
Bath Ratio 1:10 – 1:15 01:10 – 01:15 01:10 – 01:15
Fabric Speed 0 – 50 m/min 0 – 50 m/min 150 m/min.
Circulation Pump max. 1,5 Bar (Adjustable) max. 1,5 Bar (Adjustable) max. 1,5 Bar (Adjustable)
Nozle Control Auto Programmable 05,5/10mm Auto Programmable 05,5/10mm Auto Programmable 05,5/10mm
Dosing Pump max. 2 Bar max. 2 Bar max. 2 Bar
Add Tank Capacity 5 lt 20 lt 20 lt
Controller Full Automatic Process Controller Full Automatic Process Controller Full Automatic Process Controller
Power Supply 380V, 50Hz 380V, 50Hz 380V, 50Hz
Total Power 2,5 Kw 4,5 kW 7,2 kW
