Laboratory Dyeing Machines

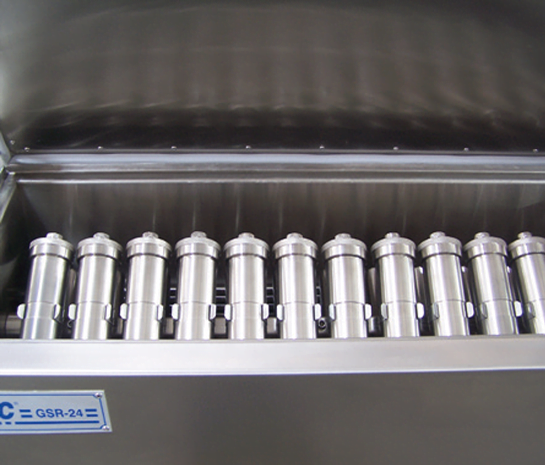

Sample Dyeing Unite Glycerine Bath ATC-GSR12-24

Glycerine Heated Dyeing machine designed for dyeing small samples of Textile materials in laboratories. Suitable for Hightemperature and Atmospheric dyeing methods. Available with 180cc or 300cc capacity as 12 or 24 beaker / with 500cc or 1200cc as 4 or 8 beaker units.

SKU ATC-GSR12-24 Categories ,

Sample Dyeing Unite Glycerine Bath ATC-GSR12-24

GRS-12 GRS-24
General Material Cr-Ni Stainless Steel Cr-Ni Stainless Steel
Capacity 12*200 cc 10*300 cc 8*500 cc 24*200 cc 20*300 cc 16*500 cc
Controller 100 Program *20 Steps Microprocessor 100 Program *20 Steps Microprocessor
Working Temperature Environment / 140 C Environment / 140 C
Rotating Speed 40 rpm 40 rpm
Temperature Sensivity 1 C 1 C
Heating Gradient 3 C/min. 3 C/min.
Cooling Gradient 3 C/min. 3 C/min.
Heating Type Resistance Resistance
Cooling Gradient Inox Serpantine / Cooling With Water Inox Serpantine / Cooling With Water
Inside Volume 26 L 50 L
Power Supply 380 V, 50Hz 380 V, 50Hz
Total Power 4 kW 8 kW
Sizes 700*420*600 m 1040*420*600 mm
Weight 46 kg 80 kg
