Fabric Dyeing Machine ATC – DYE HT ECO JET

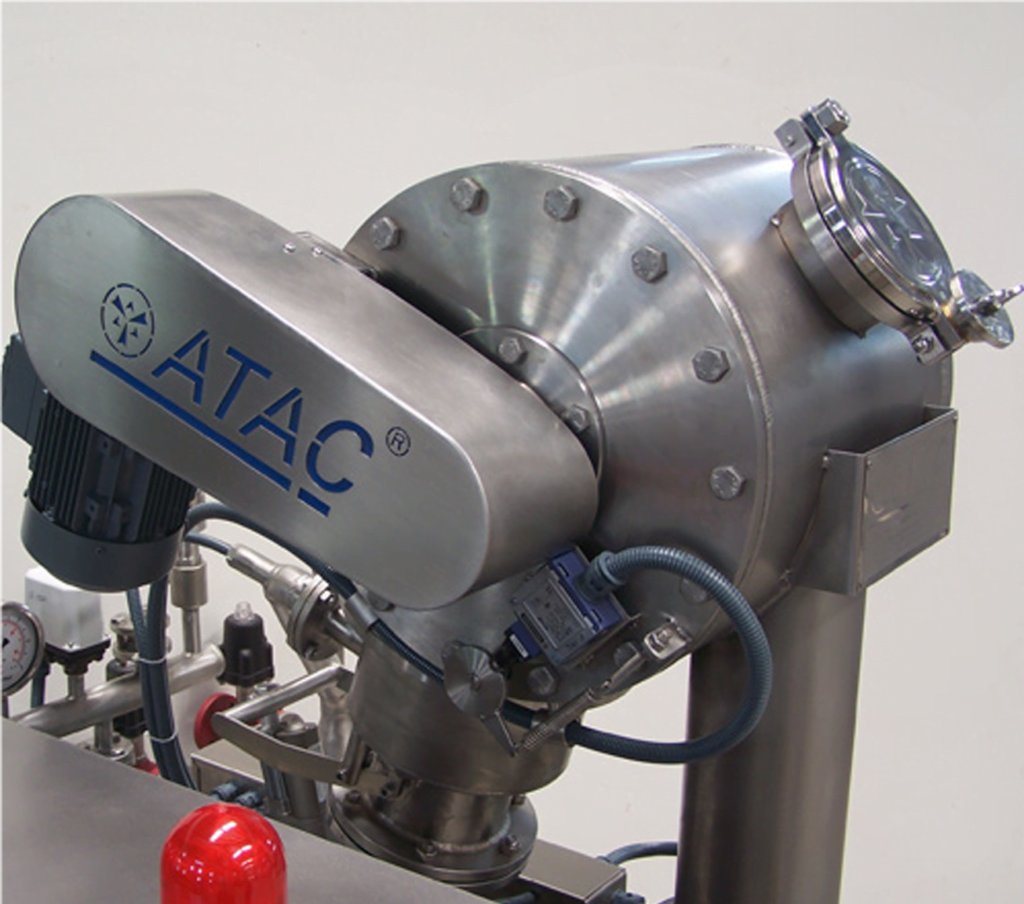

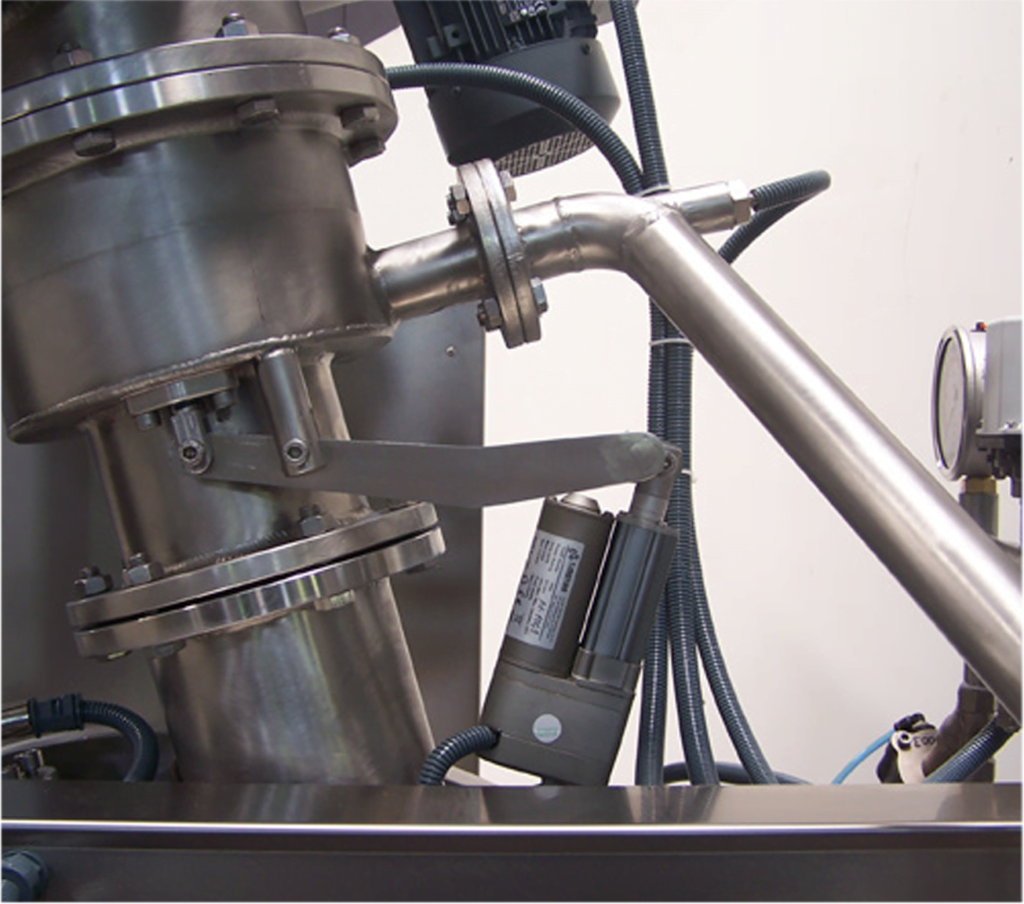

HT ECO JET is a sample fabric dyeing machine with 5-25 kg varieties. With special drum type design, it provides the opportunity to save 1:6-1:8 liquor compared to other dyeing machines. With the automatic adjustable nozzle system, nozzle pressure can be controlled from the programmer.

Machine ATC – DYE HT ECO JET 05F ATC – DYE HT ECO JET 15F ATC – DYE HT ECO JET 25F
General Material Cr-Nİ Stainless Steel Cr-Nİ Stainless Steel Cr-Nİ Stainless Steel
Machine Capacity 5 kg 15 kg 25 kg
Max. Temp. 140°C 140°C 140°C
Heating Type Steam Exchanger Steam Exchanger Steam Exchanger
Working Pressure 2,7 Bar 2,7 Bar 2,7 Bar
Bath Ratio 1:6 / 1:10 1:6 / 1:10 1:6 / 1:10
Fabric Speed max.35 m/min max.90 m/min max.150 m/min
Circulation Pump max 1,5 Bar (Adjustable) max 1,5 Bar (Adjustable) max 1,5 Bar (Adjustable)
Nozle Control Auto Programmable 0,5-10 mm Auto Programmable 0,5-10 mm Auto Programmable 0,5-10 mm
Dosing Pump Option Option Option

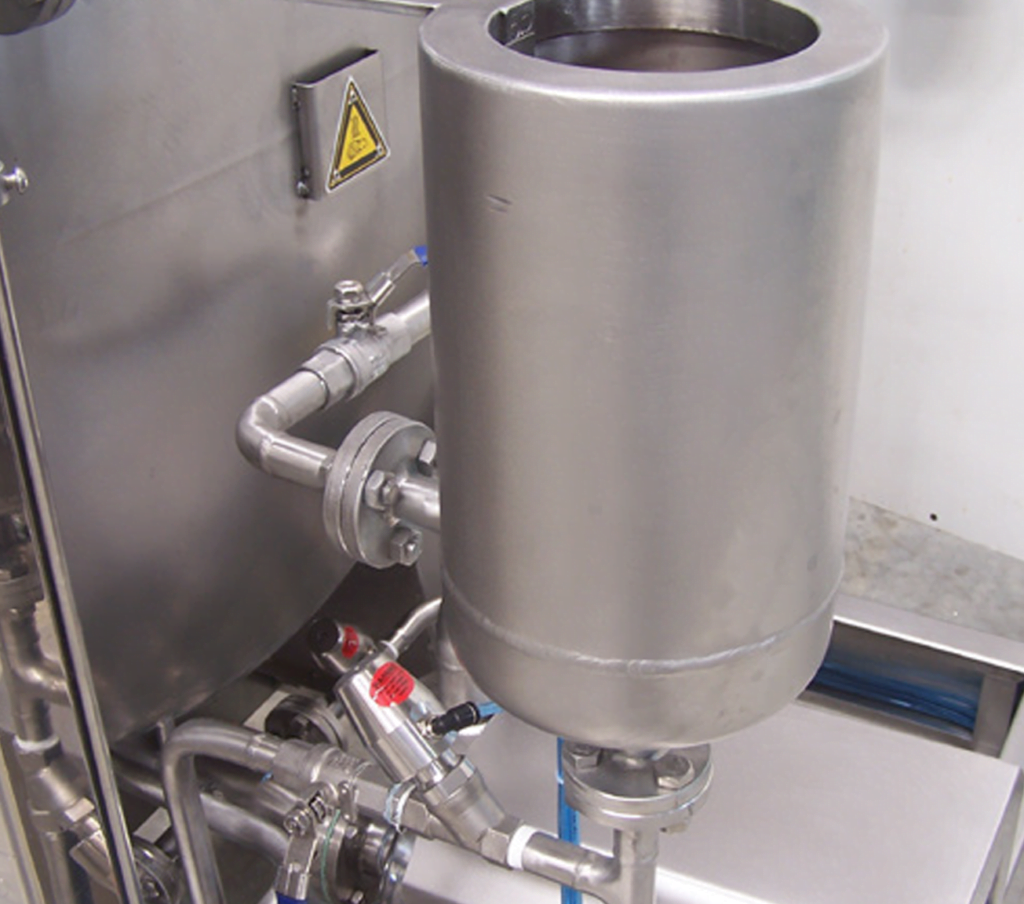

Add Tank Capacity 7 lt 20 lt 20 lt
Controller Full Automatic Process Controller Full Automatic Process Controller Full Automatic Process Controller
Power Supply 380 V, 50 Hz 380 V, 50 Hz 380 V, 50 Hz
Total Power 2 kW 6 Kw 7,5 kW

*In Re&De and laboratory working it is designed for dyeing and bleaching of cotton, mixed fibre fabric and synthetics in tube and open widht form.

*Can be regulated nozzle and pump speed for all fabrics, possible to control of pressure and flowing.

*Wide extent for safety.

*Pneumatic valve hardware.
