Textile Dye Bath Machines

Pipetting Machine Prox Lab Advance

The system does not require manual calculations for the laboratory recipe. Dyestuff and chemicals are automatically as per liquor ratio according to the weight of the material to be dyed. Special solution bottles, glass pipettes, teflon pistons, electrical switchgeaar, servo motor, non-corrosive and unbreakable main frame, professional PLC and HMI software are the main components of Profix LAB system which are choosen with high quality and high compatibility that allows the system to run 24 hours with hout any intervention.

Optionally, Profix LAB advance, with a different bottle capacity, automatically picks up and move the bottles to the washing unit when the storage time is expired. After washing the bottle new solution is prepared automatically by weighing powder dye stuff into bottles are empty, or if the exchange time is needed, they are aytomaticaly organized in the system without any additional processing.

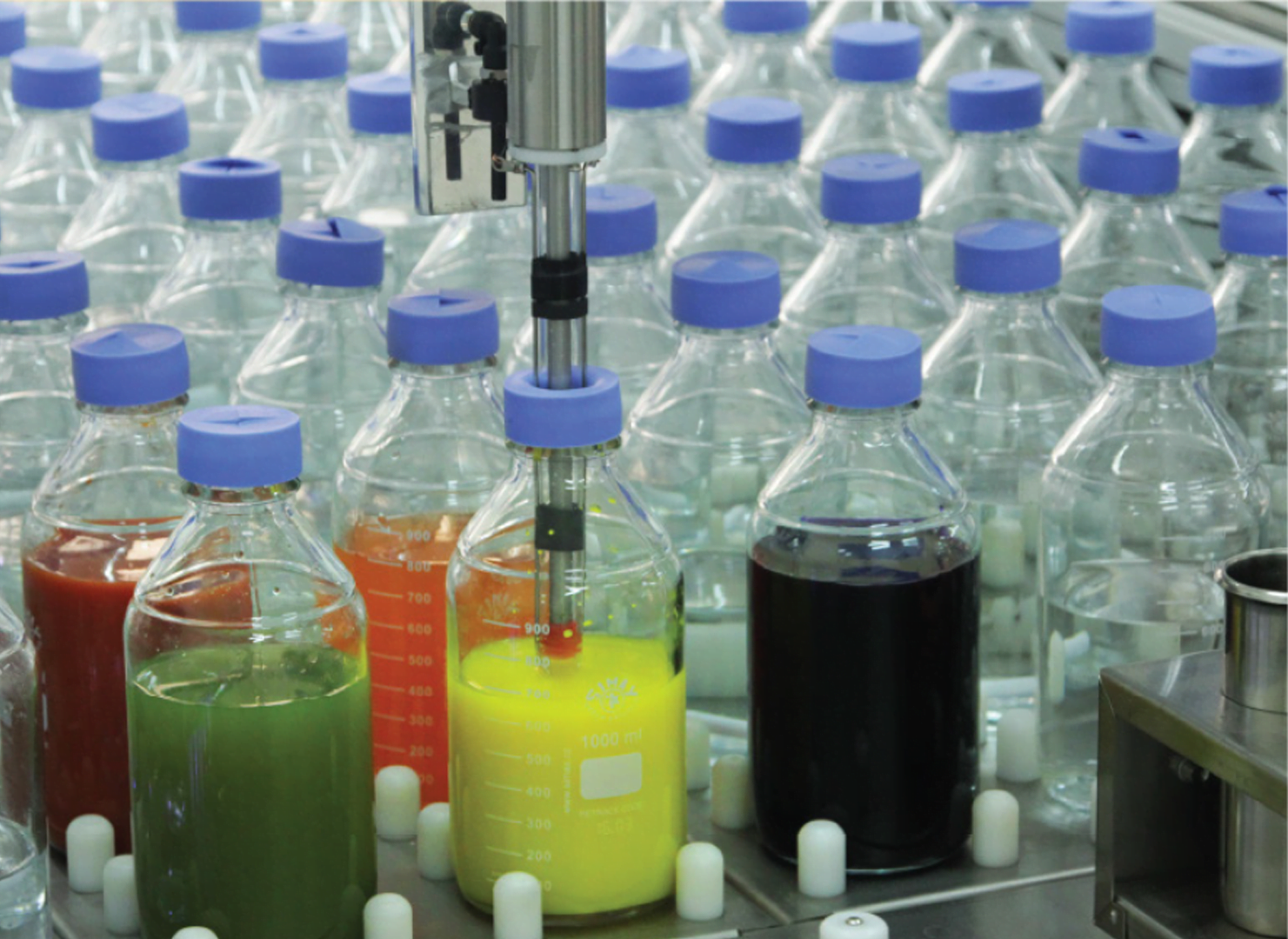

In each models, glass syringe takes the precise recipe quantities from liquid solution bottles and dose into the recipe tubes.

Volumetric dosing through glass syringe allows Profix LAB system to prepare recipes with high accuracy without being effected from vibration or any environmental changes.

Prox LAB

In advanced models, the recipe preparation process for solution bottles is domne automatically via full automatic poweder dyestuff weighing and solution preparation unit.

Solution preparation unit wighs the powder dyestuff into the solutşon bottle then once the eater adding completed solution bottles are transferred to their designated locatioms in Profix LAB bottle stock area.

In advance plus model, sample dyeing is completed automatically by dosing, material loading/unloading which allows laboratory to make sure %100 of the dyeing results without any human interference.

Min. Quantity Single Powder Dyestuff Powder Dispensing Accuracy Max Quantity Single Powder Dyestuff Min Quantity Single Solution Solutions Dispensing Accuracy
Profix LAB 80 x x 2 cc 0,01 cc
Profix LAB 120 x x x 2 cc 0,01 cc
Profix LAB 160 x x x 2 cc 0,01 cc
Profix LAB 200 x x x 2 cc 0,01 cc
Profix LAB 120 /40 advance 1g 0,002 g 30 g 2 cc 0,01 cc
Profix LAB 160 /40 advance 1g 0,002 g 30 g 2 cc 0,01 cc
Profix LAB 200 /40 advance 1g 0,002 g 30 g 2 cc 0,01 cc
Profix LAB 120 /40 /10 advance + 1g 0,002 g 30 g 2 cc 0,01 cc
Profix LAB 160 /40 /10 advance + 1g 0,002 g 30 g 2 cc 0,01 cc
Profix LAB 200 /40 /10 advance + 1g 0,002 g 30 g 2 cc 0,01 cc
