Textile Drying Machines

Laboratory Type Stenter/Steamer (E-Control) ATC-GK40E

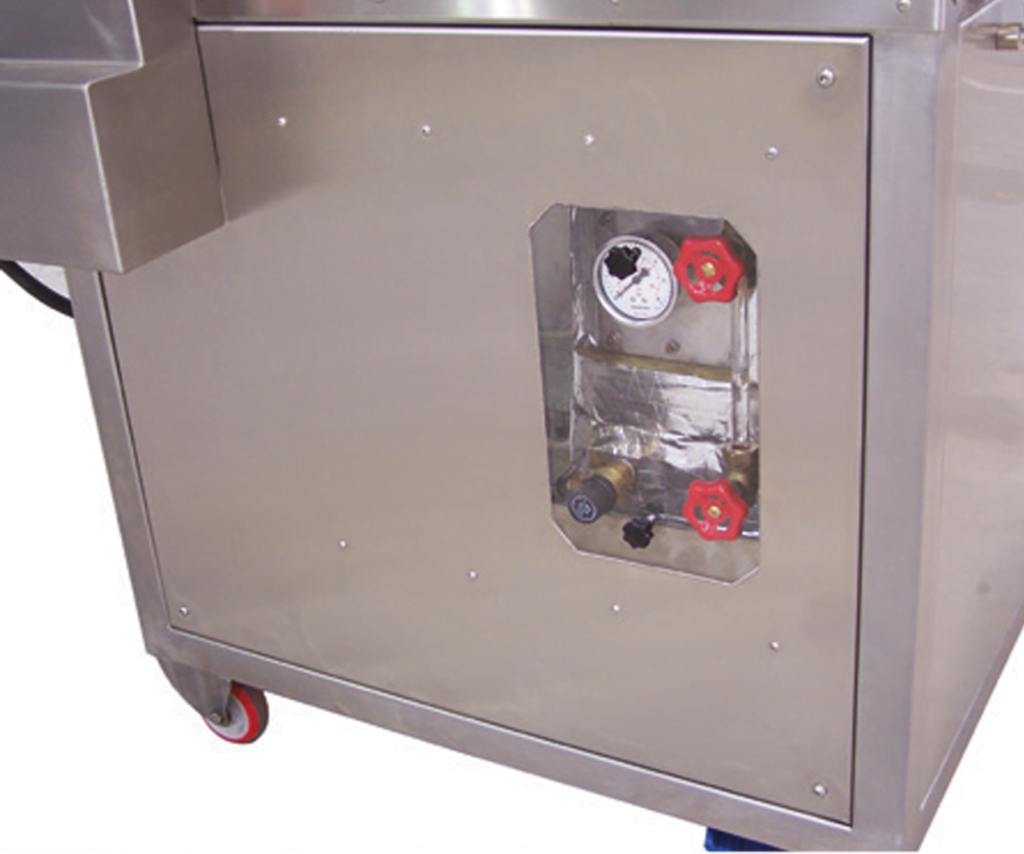

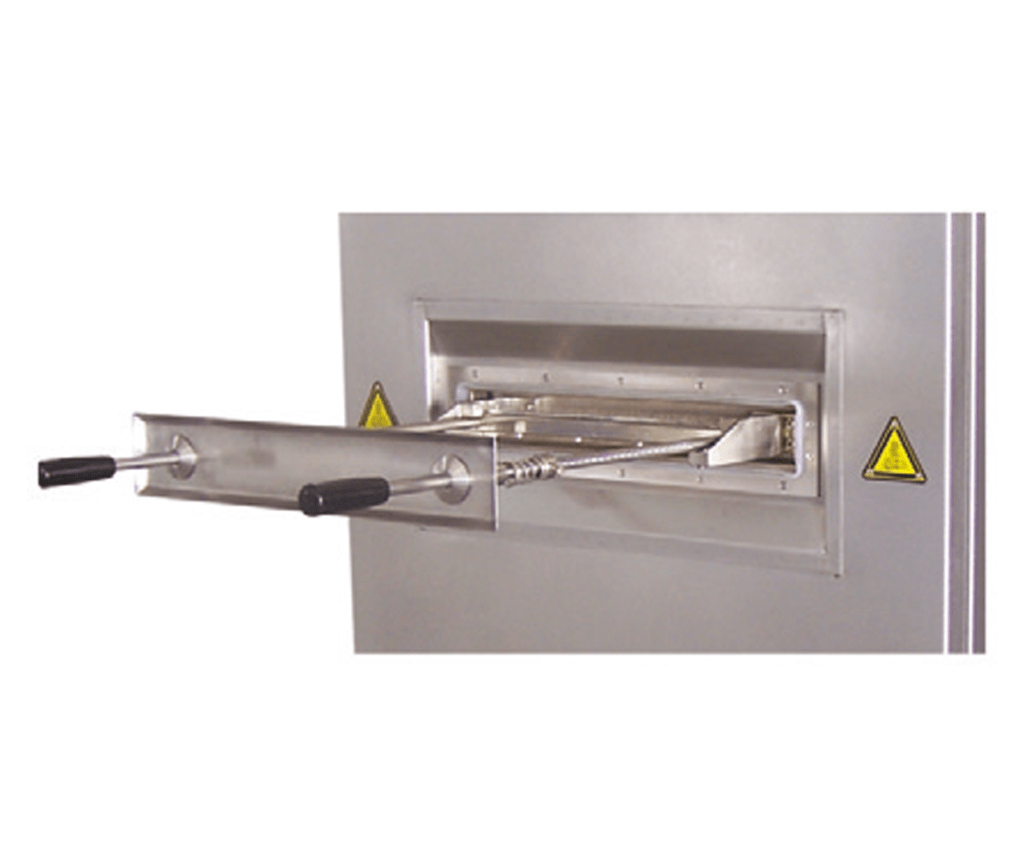

GK40E Lab Stenter/Steamer is used for all drying, fixation and thermolising processes. Minimal space requirement allows the unit to be used in all kind of laboratories. GK40E can be used for any kind of materials and aplicaitons such as Textile Dyed samples curing, Textile printed samples fixation, Textile and Leather coating curing, Paint curing and fixation on Metal surface. The Sample Holders can be provided with pins, Clamps, Web or any special requirement. GK40E is used also at E-Control applications. It is equipped with own Steam generaqtor and Humidity control and adjustment unit.

SKU ATC-GK40E Category
Technical Specifications
Machine Capacity300*350 mm
Working TemperatureMillue Temp – 250 C
Heating TypeSR. Resistance
Steam Generator Capacity7,5 kW
ControlFull Automatic Programmer
Dimensions900*1200*1670 mm
Weight300 Kg
Power Supply380 V , 50 Hz
Total Power16 kW
Circulation Fan1700 m3/min.
Heating Capacity6kW
